Specially designed to meet the requirements of dog agility disciplines.

This kit inlcude the light curtain (WIRM), a professional timer box TBox-Radio V41, 4 tripods and all the required accessories.

The WIRM Infrared Wireless Photocell Curtain features five vertically positioned photocells to reliably detect dog passages and communicate wirelessly with the TBox-Radio using a bidirectional radio protocol.

The V41 TBox having 4 wireless inputs and 2 hardwired allows up to 6 photocells or other impulse devices. Battery life is slightly less but still packing a punch it can easily manage 2 days of continuous timekeeping.

With both USB and Bluetooth integration you are able to connect to any of our Timing Apps or 3rd party Timing software solutions. Data loss is not a concern, with all critical time-stamped impulses being stored on the internal on SD card.

Onboard GPS with external antenna extends the precision further

Include:

2x WIRM RX / TX
4x Tripods + fixation
1x TBox-Radio V41
5x USB Cables
3x Antennas

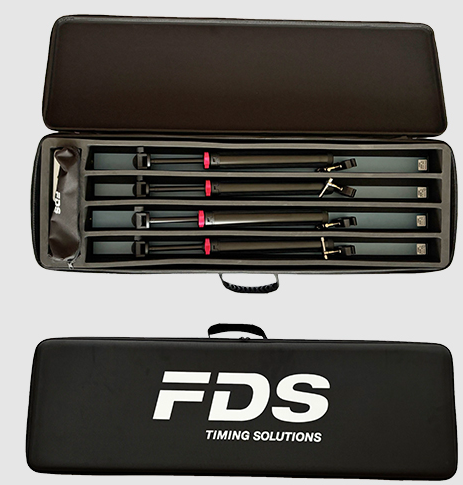

1x Transport case

FIS & FEI HOMOLOGATION

USER DOCUMENTS, SOFTWARE & FIRMWARE

Dog Agility Full Timing Kit

Name: Dog Agility Full Timing Kit
Brand: FDS TIming
SKU: FDS-K10367

$3,845.00

Excluding GST

Quantity

4-8 week delivery - contact us for an express service

WEIGHT 9.4kg (total shipping weight)
DIMENSIONS   RX body 40x40x830 mm TX body 30x30x830 mm
CHARACTERISTICS
– GPS (internal & external antenna)
– Radio module EU (869MHz) / US-CAN (920-924 MHz) / India (865-867MHz)
– 2 hardware inputs
– Up to 4 radio inputs
– RS232 output (display / printer)
– Synchro In/Out
– Mini-USB
– Bluetooth
– Precision : 1/1 to 1/1000s
– Quartz Drift (no GPS): 1 ppm at 20°C / 2.5 ppm (-20°C to +80°C)
– Output protocol : FDS, Alge, Tag Heuer, Seiko

THIS INCLUDES
– 1x USB Cable
– 2x adaptors Input (Jack – Banana)
– External GPS Antenna
– Radio Antenna
